Photo-Based Pole Data Collection: How Field Crews Capture the Data That Drives Engineering

Adam Schmehl
Nov 2, 2017
9 min read

Updated: Mar 25

Your engineering team just discovered that three midspan photos are missing from yesterday's collection run. The poles are four hours away. Your field crew has already moved to a different project. And the client needs the engineering package by Friday.

Every return trip to the field costs time, money, and morale. But the real damage isn't just the wasted truck roll. It's the cascading delay through make ready engineering, pole loading analysis, application submission, and construction. One missed photo is capable of pushing an entire project timeline back by weeks.

Photo-based data collection has become the standard for pole attachment work because it solves the fundamental problems with traditional methods: it's safer (no climbing, no hot sticks in the power space), faster (200 poles per day with a two-person crew), and more defensible (calibrated photos provide evidence of existing conditions that hold up under scrutiny). But the method only works when field crews understand what to capture, how to capture it, and why each photo matters for the engineers working downstream.

This guide breaks down the complete photo-based field collection workflow, from equipment and photo types to the pole-by-pole sequence and the mistakes that send crews back to the field.

See how Katapult Pro's data collection workflows help teams capture defensible pole data faster.

Why Photo-Based Collection Replaced Traditional Methods

For decades, field data collection for utility poles meant one thing: send an experienced engineer to each pole with a hot stick, a tape measure, and a paper form. They'd extend the hot stick up to each attachment, read the measurement, write it on a pole profile sheet, and move on. It worked, but it had serious limitations.

Manual measurement requires experienced field staff who understand what they're looking at. It's slow, typically 30-50 poles per day for skilled crews, and slower for less experienced ones.

(And then there’s the John Henry outlier that can still outperform modern methods, but since we can’t all memorize 100 pole tags in sequence… we have technology!)

The measurements are subjective and hard to defend: two people measuring the same attachment can record different heights depending on exactly where they place the stick and how they read it. And once the crew leaves the pole, the only record is what they wrote down. If there's a dispute about existing conditions during the permitting process, there's no way to go back and verify without another site visit.

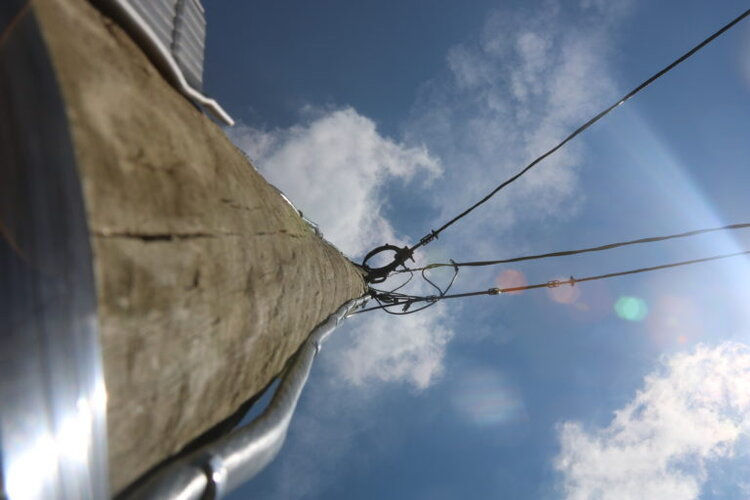

Photo-based collection flips this model. Instead of measuring in the field, crews capture calibrated photographs of every pole and midspan. A calibration stick with known measurement targets is placed at the base of the pole, and photos are taken from specific angles and distances. Back in the office, engineers use the calibration targets to measure attachment heights, identify equipment, trace cable ownership, and build complete pole models, all from the photos.

This approach changes the economics of data collection in three important ways.

First, it separates collection from engineering. Your field crew doesn't need to be experienced OSP designers. They need to be good at following a photo workflow and capturing complete, well-framed images. The experienced engineers stay in the office where they can process data faster and more consistently.

Second, it dramatically increases throughput. A well-trained two-person crew can collect 100-200 poles per day, compared to 30-50 with traditional methods. Third, every photo is a permanent, defensible record of field conditions. When a utility questions an existing clearance measurement during engineering review, you can pull up the calibrated photo and show them exactly what was on the pole.

Want to level up your growing field services with cutting-edge workflows and software? Katapult Pro standardizes the collection workflow so every photo type is captured correctly at every pole. Time-stamped buckets automatically associate thousands of photos with the right poles and spans, so your back office can start processing immediately.

Schedule a Demo | Learn More About Data Collection

How Field Photos Become Engineering Data

Collecting photos is only half the job. The real value is created in the back office, where raw field photos are transformed into structured engineering data.

Photo processing and classification. Every photo uploaded from the field gets classified by type (height shot, midspan, tag, birthmark, etc.) and associated with the correct pole or span using the time-bucket system created during collection. Calibration targets on height shots and midspan shots are identified and marked, which establishes the measurement reference for that image.

The new Target Detection feature in Katapult Pro accelerates photo calibration while also improving measurement accuracy.

Height extraction and annotation. Once a photo is calibrated, engineers measure the height of every attachment on the pole: power conductors, neutral, communication cables, equipment, crossarms, streetlights, and more. Each measurement is annotated directly on the photo and traced through the span to neighboring poles using the hallway and side shots for context. This process, sometimes called extraction, is where raw photos become structured pole attachment data.

Engineering export. With all attachments measured and annotated, the data is ready for downstream use. Engineers can propose new attachments, flag clearance violations, call make ready moves, and export pole models to loading software like SPIDAcalc, O-Calc, or Katapult Pro's integrated pole loading engine. The photo remains available as defensible evidence of existing conditions throughout the entire permitting and construction process.

Common Field Collection Mistakes and How to Avoid Them

After years of processing millions of poles, certain mistakes come up repeatedly. Knowing what to watch for prevents the most expensive problem in data collection: the return trip.

Missing midspan photos at critical crossings. This is the number one reason for field revisits. If your crew skips a midspan at a road crossing, railroad, or waterway, the engineering team can't complete the clearance analysis. Train crews to identify critical crossings during job pre-design and flag them before the crew leaves the office.

Calibration stick not flush against the pole. Even a few inches of gap between the stick and the pole introduces measurement error that scales with height. At the top of a 40-foot pole, a small gap at the base can translate to several inches of error on attachment heights. That's enough to change an engineering decision. The stick operator needs to press the stick firmly against the pole every time, with no exceptions.

Midspan photos taken at an angle. Midspan shots must be perpendicular to the span. Photos taken at an angle distort the apparent height of cables, introducing measurement errors that can lead to incorrect clearance calculations. This is one of those details that seems minor but compounds across hundreds of poles.

Not syncing cameras before collection. If both cameras aren't synced at the start of the day, the time-bucket association fails and you may need help from our support team to match thousands of photos to the correct poles. This turns an “automagic” feature into a support ticket which make take a business day to resolve. Still better than re-collecting or manual association, but not ideal. Sync at the start. Sync again if either camera's battery dies and the camera restarts.

Scaling Collection for High-Volume Projects

The two-person, photo-based workflow scales well, but high-volume projects (500-5,000+ poles) require additional planning to maintain consistency and throughput.

Pre-design from the office, not the field. Every minute your field crew spends making design decisions in the field is a minute they're not collecting data. Use aerial imagery and street view to pre-design the route before the crew heads out. Mark poles, identify potential access issues, flag poles that need extra attention (complex guying, heavy canopy, potential GPS needs), and create the job design so the field crew can focus exclusively on collecting.

Standardize the workflow across crews. When multiple teams are collecting on the same project, inconsistency kills back-office efficiency. Different photo angles, different levels of detail, different approaches to split midspans, all of these create extra processing time and quality control headaches. Standard operating procedures, consistent training, and regular feedback loops keep everyone aligned.

Flag poles for special treatment during design. Not every pole is the same. Some need extra context photos because of complex guying or multi-circuit configurations. Some need GPS verification because aerial imagery is outdated or obscured. Flagging these during job design means the field crew knows before they arrive what additional data to capture.

Invest in field crew feedback. The fastest way to improve collection quality is to close the loop between the back office and the field. When an engineer discovers a recurring issue (wrong angle, missing photo type, poor framing), that feedback needs to reach the field crew quickly and specifically. Platforms that track who collected what and when make this feedback loop possible.

Tools and Platforms for Photo-Based Collection

Several approaches to photo-based pole data collection exist in the market, each with different tradeoffs.

Device-based measurement systems. Products like the IKE Device combine a laser range finder with a digital camera and field software. The device captures measurements electronically, reducing some back-office processing. However, these are single-tool ecosystems that may not integrate with all downstream engineering platforms. IKE specifically owns PoleForeman and assures a strong integration between data collection, processing, and loading analysis.

Integrated collection platforms. Platforms like Katapult Pro combine the field collection workflow (smartphone navigation, time-bucket photo association, real-time progress tracking) with back-office processing (calibration, annotation, cable tracing) and downstream engineering (make ready design, clearance flagging, pole loading export) in a single system. The advantage is that data flows from field to engineering without format conversions or manual data transfers. The tradeoff is platform commitment.

Mobile LiDAR and 360-degree imagery. Vehicle-mounted LiDAR systems and 360-degree cameras can capture entire pole routes at driving speed. Processing extracts pole locations, attachment heights, and 3D models. This approach offers massive speed for large-scale data capture but requires significant post-processing infrastructure and may still need ground-level photos for pole tags, birthmarks, and detail data that vehicle-based systems can't reliably capture.

The right tool depends on your project requirements, your client's preferred engineering platforms, and the balance between field speed and back-office processing effort. What matters most is that your tool produces data your engineers can trust, in a format your clients can accept.

Frequently Asked Questions

How many poles can a two-person crew collect per day? A well-trained two-person crew using photo-based workflows can typically collect 20-30 poles an hour for a full pole loading scope, though a typical collection day has drive time, walking, and breaks. The range depends on terrain, pole spacing, access conditions, weather, and project scope. High-density urban routes with easy access can get closer to 30 p. Rural routes with heavy vegetation and limited road access trend lower.

Can one person collect pole data alone? Technically yes, but throughput drops significantly. The two-person workflow is optimized for parallel activity: while the DSLR operator takes the height shot and side shot, the small camera operator is capturing tags, birthmarks, and up shots simultaneously. A solo collector does everything sequentially, cutting daily pole counts by more than 50%. Contact Katapult Pro support for more information about solo workflows such as a hastings stick with our height stickers.

How accurate is photo-based measurement compared to hot sticks? Photo-based measurement using a properly calibrated height stick is typically accurate to within 3 inches up to 50 feet, which is comparable to or better than manual hot stick measurement. The key advantage is that photo measurements are verifiable and repeatable. If there's a question about a measurement, you can re-measure from the same photo rather than sending a crew back to the field.

What happens if the calibration stick is damaged or the targets are obscured? If calibration targets are damaged, dirty, or obscured (by leaves, mud, or sun glare), the photo can't be calibrated accurately. Crews should inspect the stick before each day's work, clean sticks regularly, and replace damaged sticks. Accuracy can degrade as fiberglass sticks get more worn and flimsy.

How does photo data feed into pole loading analysis? Once photos are calibrated and attachment heights are measured, the data can be exported to pole loading software (SPIDAcalc, O-Calc, PoleForeman, or integrated engines like Katapult Pro's built-in pole loading). The loading software uses the attachment heights, conductor specs, pole specifications (from birthmark data), guying information, and proposed new attachment to calculate whether the pole meets NESC safety standards under expected weather conditions.

Do I need special cameras for photo-based collection? You need a specific DSLR or mirrorless camera for accurate measurement in Katapult Pro.

How long does back-office processing take per pole? Processing time varies based on pole complexity and the platform being used. With integrated platforms that automate photo association and provide calibration tools, experienced back-office staff can process 50-100 poles per day. Manual processing without integrated tools is significantly slower.

Ready to Collect Better Pole Data?

Photo-based data collection transformed how the industry approaches field work, and for good reason. It's safer, faster, more accurate, and produces permanent records that hold up through engineering and construction.

But the method only delivers its full value when field crews are trained, equipped, and supported with workflows that ensure completeness. Feedback early and often is critical. Each mistake can create downstream pain for the engineers and project managers who depend on that data.

At Katapult, we've been collecting and processing pole data for over 30 years. Katapult Pro was built from that field experience to give your teams a faster, more consistent way to collect, process, and deliver pole attachment data, all within one platform that connects data collection, engineering design, and workflow management.
